12. Fragment example in Android

12. Fragment example in Android

Quick Points:

1. Create Activity and frame layout(i.e. Container for fragment)
2. Create fragments
3. Add button listener to add/replace the frame layout with different fragments

We will create one activity and 3 buttons. When We click on button, framelayout will be replaced by another fragment. Below is the java and xml code for the same.

FragmentTestActivity:

package tutorial.android.sachin4droid.androidtutorials;

import android.app.Activity;

import android.app.Fragment;

import android.app.FragmentManager;

import android.app.FragmentTransaction;

import android.net.Uri;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.widget.Button;

import android.widget.FrameLayout;

import tutorial.android.sachin4droid.androidtutorials.fragment.Fragment1;

import tutorial.android.sachin4droid.androidtutorials.fragment.Fragment2;

public class FragmentTestActivity extends Activity implements Fragment2.OnFragmentInteractionListener,Fragment1.OnFragmentInteractionListener{

  Button button1Fragment,button2Fragment;

  //FrameLayout frameLayout;

  @Override

  protected void onCreate(Bundle savedInstanceState) {

      super.onCreate(savedInstanceState);

      setContentView(R.layout.activity_fragment_test);

      button1Fragment = (Button) findViewById(R.id.button1Fragment);

      button2Fragment = (Button) findViewById(R.id.button2Fragment);

     // frameLayout = (FrameLayout) findViewById(R.id.framelayout);

      button1Fragment.setOnClickListener(new View.OnClickListener() {

          @Override

          public void onClick(View view) {

              FragmentManager fm = getFragmentManager();

              FragmentTransaction ft = fm.beginTransaction();

              ft.addToBackStack("Fragment1");

              ft.add(R.id.framelayout, new Fragment1());

              ft.commit();

          }

      });

      button2Fragment.setOnClickListener(new View.OnClickListener() {

          @Override

          public void onClick(View view) {

              FragmentManager fm = getFragmentManager();

              FragmentTransaction ft = fm.beginTransaction();

              ft.add(R.id.framelayout, new Fragment2());

              ft.addToBackStack("Fragment2");

              ft.commit();

          }

      });

      FragmentManager fm = getFragmentManager();

      FragmentTransaction ft = fm.beginTransaction();

      ft.add(R.id.framelayout, new Fragment1());

      ft.commit();

  }

  @Override

  public void onFragmentInteraction(Uri uri) {

  }

}

Fragment1:

package tutorial.android.sachin4droid.androidtutorials.fragment;

import android.content.Context;

import android.net.Uri;

import android.os.Bundle;

import android.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import tutorial.android.sachin4droid.androidtutorials.R;

public class Fragment1 extends Fragment {

  public Fragment1() {

      // Required empty public constructo

  }

  @Override

  public void onCreate(Bundle savedInstanceState) {

      super.onCreate(savedInstanceState);

  }

  @Override

  public View onCreateView(LayoutInflater inflater, ViewGroup container,

                           Bundle savedInstanceState) {

      // Inflate the layout for this fragment

      return inflater.inflate(R.layout.fragment_fragment1, container, false);

  }

  // TODO: Rename method, update argument and hook method into UI event

  public void onButtonPressed(Uri uri) {

  }

  public interface OnFragmentInteractionListener {

      // TODO: Update argument type and name

      void onFragmentInteraction(Uri uri);

  }

}

Fragment2.java

package tutorial.android.sachin4droid.androidtutorials.fragment;

import android.content.Context;

import android.net.Uri;

import android.os.Bundle;

import android.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import tutorial.android.sachin4droid.androidtutorials.R;

/**

* A simple {@link Fragment} subclass.

* Activities that contain this fragment must implement the

* {@link Fragment2.OnFragmentInteractionListener} interface

* to handle interaction events.

* Use the {@link Fragment2#newInstance} factory method to

* create an instance of this fragment.

*/

public class Fragment2 extends Fragment {

  // TODO: Rename parameter arguments, choose names that match

  // the fragment initialization parameters, e.g. ARG_ITEM_NUMBER

  private static final String ARG_PARAM1 = "param1";

  private static final String ARG_PARAM2 = "param2";

  // TODO: Rename and change types of parameters

  private String mParam1;

  private String mParam2;

  private OnFragmentInteractionListener mListener;

  public Fragment2() {

      // Required empty public constructor

  }

  /**

   * Use this factory method to create a new instance of

   * this fragment using the provided parameters.

   *

   * @param param1 Parameter 1.

   * @param param2 Parameter 2.

   * @return A new instance of fragment Fragment2.

   */

  // TODO: Rename and change types and number of parameters

  public static Fragment2 newInstance(String param1, String param2) {

      Fragment2 fragment = new Fragment2();

      Bundle args = new Bundle();

      args.putString(ARG_PARAM1, param1);

      args.putString(ARG_PARAM2, param2);

      fragment.setArguments(args);

      return fragment;

  }

  @Override

  public void onCreate(Bundle savedInstanceState) {

      super.onCreate(savedInstanceState);

      if (getArguments() != null) {

          mParam1 = getArguments().getString(ARG_PARAM1);

          mParam2 = getArguments().getString(ARG_PARAM2);

      }

  }

  @Override

  public View onCreateView(LayoutInflater inflater, ViewGroup container,

                           Bundle savedInstanceState) {

      // Inflate the layout for this fragment

      return inflater.inflate(R.layout.fragment_fragment2, container, false);

  }

  // TODO: Rename method, update argument and hook method into UI event

  public void onButtonPressed(Uri uri) {

      if (mListener != null) {

          mListener.onFragmentInteraction(uri);

      }

  }

  @Override

  public void onAttach(Context context) {

      super.onAttach(context);

      if (context instanceof OnFragmentInteractionListener) {

          mListener = (OnFragmentInteractionListener) context;

      } else {

          throw new RuntimeException(context.toString()

                  + " must implement OnFragmentInteractionListener");

      }

  }

  @Override

  public void onDetach() {

      super.onDetach();

      mListener = null;

  }

  /**

   * This interface must be implemented by activities that contain this

   * fragment to allow an interaction in this fragment to be communicated

   * to the activity and potentially other fragments contained in that

   * activity.

   * <p>

   * See the Android Training lesson <a href=

   * "http://developer.android.com/training/basics/fragments/communicating.html"

   * >Communicating with Other Fragments</a> for more information.

   */

  public interface OnFragmentInteractionListener {

      // TODO: Update argument type and name

      void onFragmentInteraction(Uri uri);

  }

}

Activity_fragment_test.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

  xmlns:app="http://schemas.android.com/apk/res-auto"

  xmlns:tools="http://schemas.android.com/tools"

  android:layout_width="match_parent"

  android:layout_height="match_parent"

  android:orientation="vertical"

  tools:context="tutorial.android.sachin4droid.androidtutorials.FragmentTestActivity"

  >

<LinearLayout

  android:layout_width="match_parent"

  android:layout_height="wrap_content"

  >

  <Button

      android:id="@+id/button1Fragment"

      android:layout_width="wrap_content"

      android:layout_height="wrap_content"

      android:text="Button1" />

  <Button

      android:id="@+id/button2Fragment"

      android:layout_width="wrap_content"

      android:layout_height="wrap_content"

      android:text="Button2" />

</LinearLayout>

  <FrameLayout

      android:id="@+id/framelayout"

      android:layout_width="match_parent"

      android:layout_height="match_parent"

     >

  </FrameLayout>

</LinearLayout>

Fragment_fragment1.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

  xmlns:tools="http://schemas.android.com/tools"

  android:layout_width="match_parent"

  android:layout_height="match_parent"

  android:background="@android:color/holo_green_light"

  tools:context="tutorial.android.sachin4droid.androidtutorials.fragment.Fragment1">

  <!-- TODO: Update blank fragment layout -->

  <TextView

      android:layout_width="match_parent"

      android:layout_height="match_parent"

      android:text="I am in fragment 1"

      android:textSize="30dp"

      android:layout_gravity="center"/>

</LinearLayout>

Fragment_fragment2.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

  xmlns:tools="http://schemas.android.com/tools"

  android:layout_width="match_parent"

  android:layout_height="match_parent"

  android:background="@android:color/holo_orange_dark"

  tools:context="tutorial.android.sachin4droid.androidtutorials.fragment.Fragment2">

  <!-- TODO: Update blank fragment layout -->

  <TextView

      android:layout_width="match_parent"

      android:layout_height="match_parent"

      android:text="I am in fragment 2"

      android:textSize="30dp"

      android:layout_gravity="center"/>

</LinearLayout>

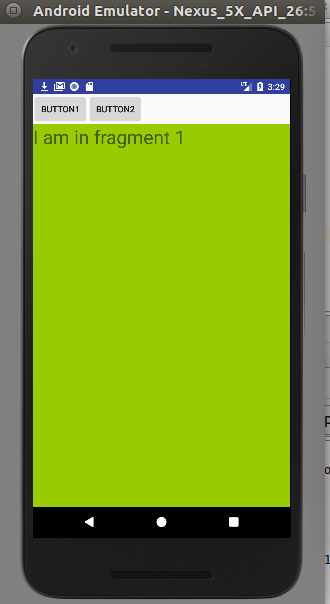

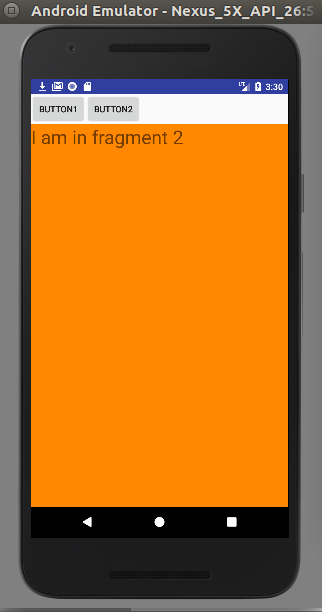

OUTPUT:

Thank you.
